Object commands

Preset Commands

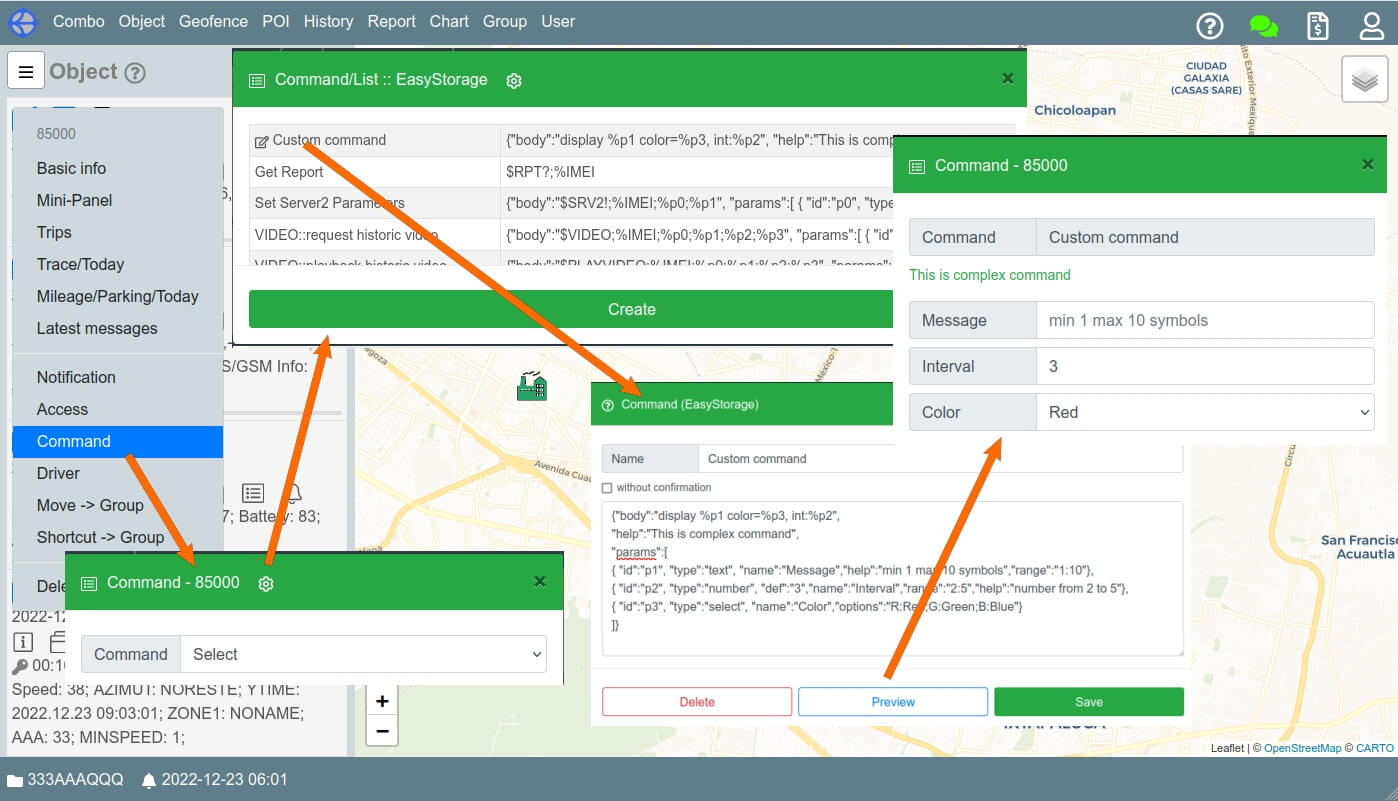

For some types of devices, there is a set of preset commands. Work with preset commands may be blocked. To do this, in the title of the command list panel, click on the "Settings" icon and uncheck the "System/Command" checkbox. Custom commands in the list start with the "Edit" icon.

Custom commands

When creating a command, you must specify its name and body. Commands of two types are provided: simple and command with parameters. In simple commands, the content specified in the body of the command is sent to the device as is. Commands with parameters should be created in the form of a JSON block. If the body of the command begins with the symbol "{" and ends with the symbol "}", the system treats this command as a command with parameters.

Mandatory attributes of the root JSON are:

• body - template of the body of the command, which before sending is filled with the values ​​of the command parameters.
• params - an array that defines the parameters of the command.

An optional attribute in the root JSON is the help attribute. It allows you to display additional information text in the "parameters filling" window.

Each element of the parameter array must contain the required attributes:

• id - defines the identifier of the parameter. A substring with such id must be present in the command body template. Example: if “id”=“prm1”, then the substring %prm1 should be present in the template.
• type - valid values: "text", "number”, "select","datetime". This attribute defines the rules for processing the parameter. When specifying "select", the element must also contain the "options" attribute. The options element defines the composition of the selection list. Format: “val1:text1; ... valN:textN”. When substituting into the template, valX will be selected for the corresponding selected option. The "datetime" parameters have two additional attributes “format” and “out_format”. The “format” attribute defines the date format in the input field, and the “out_format” attribute defines the format in which the given date will be transmitted in the command. Example: {"id":"p1", "type":"datetime", "name":"Date,time", "format":"DD-MM-YYYY hh:mm:ss", "out_format":"DDMMYYhhmmss"}
• name - sets the name of the parameter displayed in the parameter filling panel.

Elements of the parameter array may contain optional attributes:

• help - text (placeholder) that appears in the field if it is not filled.
• def - the value that is substituted into the field when the panel is opened (applies only to the types of "text" and "number").
• range - a rule that is checked before filling out the template. The format is “range”:”min:max”. For a "text" type, this means that the string must contain at least "min" characters and at most "max" characters. For type "number", this means that the value entered must be a number in the range from "min" to "max"

Example:

Copy to clipboard

{"body":"display %p1 color=%p3, int:%p2",
"help":"This is complex command",
"params":[
{ "id":"p1", "type":"text", "name":"Message","help":"min 1 max 10 symbols","range":"1:10"},
{ "id":"p2", "type":"number", "def":"3","name":"Interval","range":"2:5","help":"number from 2 to 5"},
{ "id":"p3", "type":"select", "name":"Color","options":"R:Red;G:Green;B:Blue"}
]}

Some types of devices require sending IMEI or password in the command. In this case, the substrings %IMEI and/or %PSW must be included in the template. Parameters for them do not need to be defined. These values ​​will be automatically filled by the system when sending commands to the device.

If you mark the checkbox "without confirmation" in the command editing panel, then additional confirmation for sending the command is not required.

Chain of Commands

The process of creating and editing command chains is similar to the process of creating a command. The command delimiter in the chain is the substring %EOC%.

An example of a simple chain with commands without parameters:

Copy to clipboard

 $$,%IMEI,stop%EOC%$$,%IMEI,alarm

An example of a chain commands with parameters:

Copy to clipboard

{"body":"CTRL/TEMPERATURE/R1 %p1%EOC%CTRL/TEMPERATURE/R2 %p1%EOC%CTRL/NLIGHT ON%EOC%CTRL/NIGHTLIGHT/COLOR %p2",
"help":"Setting the temperature in rooms 1,2 and turning on the night lamp with a given color",
"params":[
{ "id":"p1", "type":"number", "def":"26","name":"Temperature","range":"18:28"},
{ "id":"p2", "type":"select", "name":"Color","options":"R:Red;G:Green;B:Blue"}
]}
